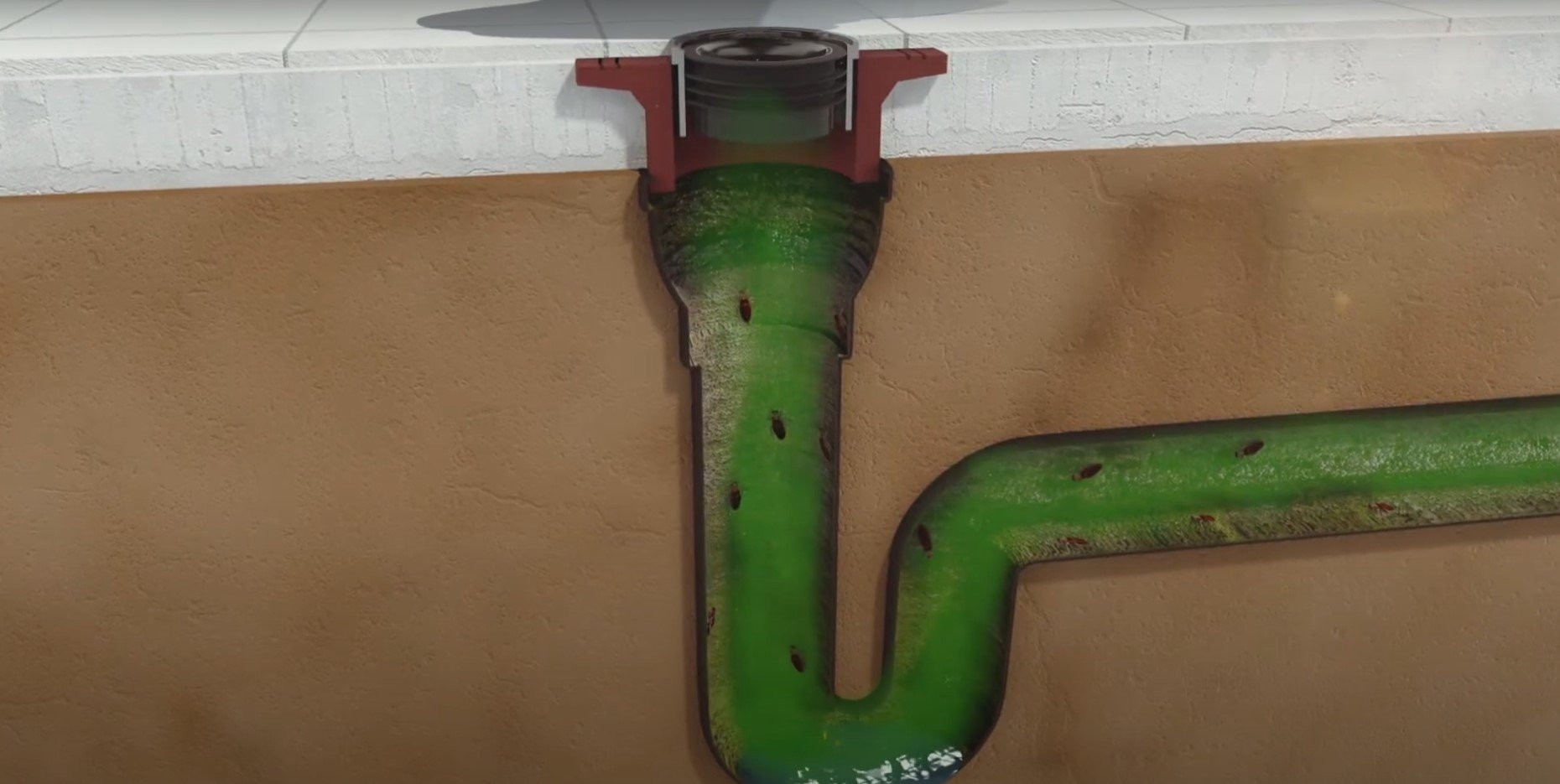

The Green Drain is an environmentally friendly water-free trap seal designed to prevent sewer gases, odours, and pests from entering buildings through floor drains. It uses a flexible silicone membrane that allows water to flow through while sealing off when water flow stops

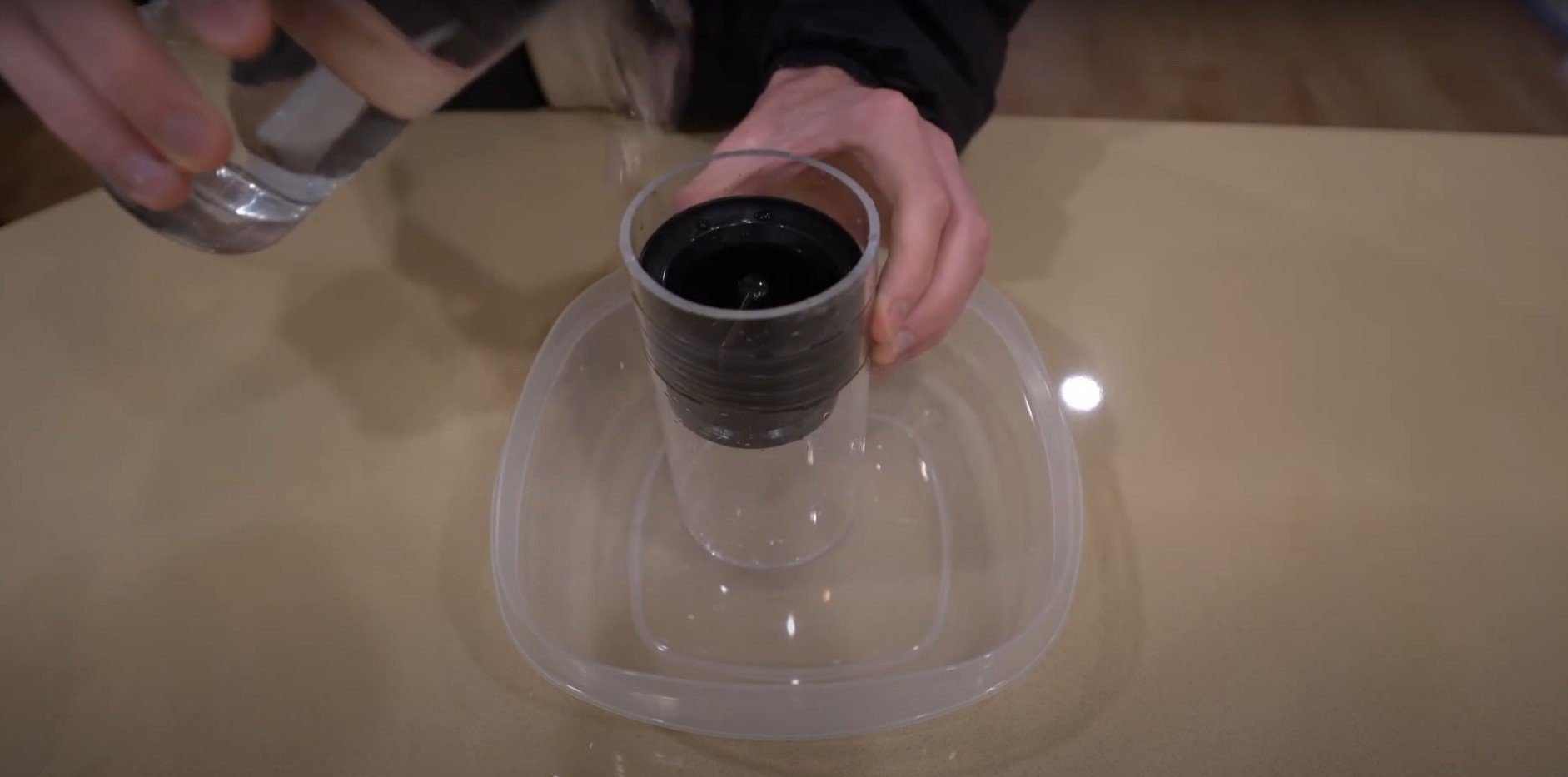

The device has a silicone membrane that opens to let water and debris pass through and closes to prevent the backflow of gases and pests once the water stops flowing.

The Green Drain’s design allows water to rinse the membrane, preventing the buildup of dirt, hair, and grease that is common in traditional trap seals.

It can be installed in almost all types of floor drains in various settings, including factories, schools, hospitals, restaurants, hotels, public buildings, and residential homes. It is suitable for new buildings and retrofits in older structures.

The Green Drain comes in eight sizes to fit different drain diameters:

• GD125 (1.25”): 31-36 mm

• GD15 (1.5”): 37-45 mm

• GD2 (2”): 46-55 mm

• GD3 (3”): 68-80 mm

• GD35 (3.5”): 85-94 mm

• GD4 (4”): 95-104 mm

• GD5 (5”): 105-130 mm

• GD6 (6”): 145-155 mm

Yes, it can be installed without tools. After removing the drain grating, the Green Drain can be pushed into the pipe to fit snugly. For optimal flow, it is recommended to recess the Green Drain 2-3 inches into the drainpipe.

Yes, it can be installed without tools. After removing the drain grating, the Green Drain can be pushed into the pipe to fit snugly. For optimal flow, it is recommended to recess the Green Drain 2-3 inches into the drainpipe.

Yes, it replaces traditional water trap seals and offers several advantages, including improved indoor air quality, prevention of wastewater backflow, and resistance to vacuum in the drainage system.

Yes, the Green Drain can be used alongside a P-trap. It does not contain water and functions effectively in combination with other trap systems.

Yes, the Green Drain works in both horizontal and vertical installations.

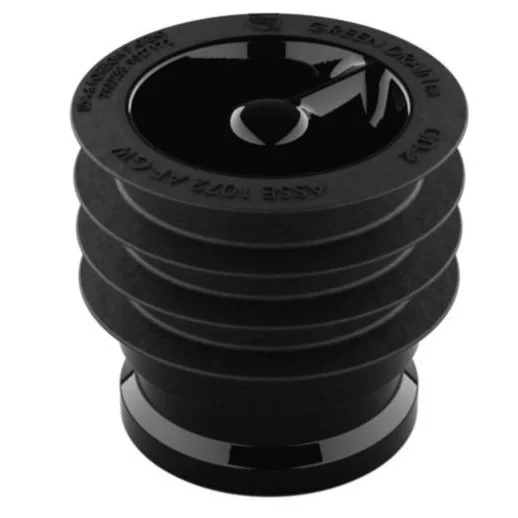

The Green Drain is constructed from UV-resistant ABS plastic with a silicone rubber seal/membrane and features four flexible sealing flanges for easy installation and a perfect fit.

Yes, it has been approved and tested by numerous institutions, including the International Association of Plumbing and Mechanical Officials (IAPMO), American Society of Sanitary Engineering (ASSE), and several international bodies. It meets various standards such as CE, ANSI, and HACCP.

GREEN DRAIN™ has been approved or tested by following institutions – among others:

• International Association of Plumbing and Mechanical Officials (IAPMO R&T LAB) No.: 24772

• American Society of Sanitary Engineering (ASSE) Standard 1072-2007, Performance Requirements for Barrier Type Floor Drain Trap Seal Protection Devices

• CSA B79-2008 (R13), Floor, Area and Shower Drains, and Cleanouts for Residential Construction

• Hazard Analysis and Critical Control Point (HACCP) Food Zone Classification: SSZ

• HACCP based Food Safety Programme GLOBAL Certificate Number: I-PE-891-GRE-RG-01

• European Technical Assessment (ETA)- 18/0536

• Danmark A/S- VA Approval 2.47/20696

• Technological Institute- DS/EN 1253-1

• European Assessment Document (EAD) no. EAD 180020-00-0704 for Waterless Odour Trap for Floor Drains.

• Danish Technological Institute (DTI) PN-713952

• IAPMO R&T OCEANA (Certificate of Certification No.: IAPMO-WM-022837-I01-R00)

• WATERMARK License No.: WM-022837

• JAS-ANZ (Evaluated to: WMTS-522:2018) Barrier Type Floor Drain Trap Seal Protection Devices

• Tokyo Metropolitan Industrial Technology Research Institute

• State of Michigan Department of Licensing and Regulatory Affairs (LARA)

• MI Certificate of Acceptability Product Approval- 1657-PA

• Wisconsin Department of Safety and Professional Services Product File No: 20170008

In compliance with the following codes:

• 2018, 2015, 2012, 2009 and 2006 Uniform Plumbing Code(r) (UPC)

• 2018, 2015, 2012, 2009 and 2006 International Plumbing Code(r) (IPC)

• 2018, 2015, 2012, 2009 and 2006 International Residential Code(r) (IRC)

• 2015, 2010 and 2005 National Plumbing Code of Canada(r) (NPC)

Wisconsin Administrative Code- SPS 382-384 and Chapters 145 and 160 Wisconsin Statutes

No, the Green Drain is not classified as a backflow device, but it can withstand up to 4 lbs. of pressure before the silicone valve inverts.

The Green Drain improves indoor air quality, prevents pest infiltration, reduces exposure to hazardous sewer gases, and is eco-friendly by eliminating the need for trap primers and continuous water flow.

Measure the diameter of your drain opening and compare it with the available sizes of the Green Drain (1.25” to 6”). Ensure that the chosen size fits within the diameter range for a snug fit.

Yes, the Green Drain is designed to handle high flow rates without impeding water drainage. Specific flow rates can vary by size, but it generally accommodates typical residential and commercial drain flows.

The Green Drain is made from durable, UV-resistant materials that ensure a long lifespan. While specific longevity can vary based on usage and environmental conditions, it is designed to provide many years of reliable service.

Yes, the Green Drain can be used in outdoor drains, including those in parking lots, patios, and other exposed areas, as it is made from UV-resistant materials.

Minimal maintenance is required. It is self-cleaning, but periodic inspection and cleaning may be beneficial in environments with heavy debris or grease accumulation.

The Green Drain is designed to prevent common pests such as drain flies, cockroaches, and other small insects from entering through the drains. Its one-way valve effectively blocks these pests while allowing water to flow through.

By sealing off the drain when water is not flowing, the Green Drain prevents sewer gases and odours from entering the building, thus improving indoor air quality.

Yes, it can be used alongside other plumbing devices such as trap primers and P-traps. It is also compatible with various plumbing systems and codes.

If the Green Drain becomes clogged, remove it from the drain and clean it with water and a mild detergent. Ensure that no debris is blocking the silicone membrane before reinstalling it.

The Green Drain eliminates the need for water-filled trap seals, which can dry out and require frequent refilling. This helps conserve water and reduce utility bills.

Yes, the Green Drain is HACCP certified and safe for use in food preparation areas, including kitchens and food processing plants. It helps prevent contamination from sewer gases and pests.

Ensure you have selected the correct size. If it still does not fit, contact customer support for assistance or consider using an adapter to ensure a snug fit.

The Green Drain is designed to comply with various international plumbing codes. However, it is always advisable to check with local authorities to ensure compliance with specific local codes.

Yes, the Green Drain can be used in HVAC condensate drains to prevent backflow and block sewer gases and pests.

The Green Drain typically comes with a manufacturer’s warranty. Check the specific terms and conditions provided at the time of purchase.

No, the Green Drain is designed to prevent foul gases, odours, and pests from entering through the drain. It does not stop water from coming back up the drain; for that, a backflow preventer is required.

The Green Drain can handle a flow rate of up to 12 gallons per minute, which is suitable for most residential and commercial applications.

Yes, the Green Drain is made from UV-resistant ABS plastic and a silicone rubber sealing flapper, making it resistant to chemicals and corrosion.

Yes, the Green Drain is available in multiple sizes (1.25”, 1.5”, 2”, 3”, 3.5”, 4”, 5”, and 6”) to fit a variety of standard plumbing sizes.

Yes, the Green Drain can be used in outdoor settings, including parking lots and patios, thanks to its durable and UV-resistant materials.

The Green Drain helps reduce water usage by eliminating the need for water-filled trap seals that can dry out and require frequent refilling. It also reduces the need for chemical cleaners, contributing to lower chemical runoff and environmental impact.

Yes, the Green Drain is HACCP certified, making it suitable for use in commercial kitchens, food processing plants, and other environments where food safety is a concern.

To remove the Green Drain, you can use a hook arm close to the spoke and pull up to remove it from the drain. Some models may require a specific tool for removal.

Yes, the Green Drain can be used in conjunction with other plumbing devices such as P-traps and trap primers, although it cannot replace a trap primer where one is required by code.
